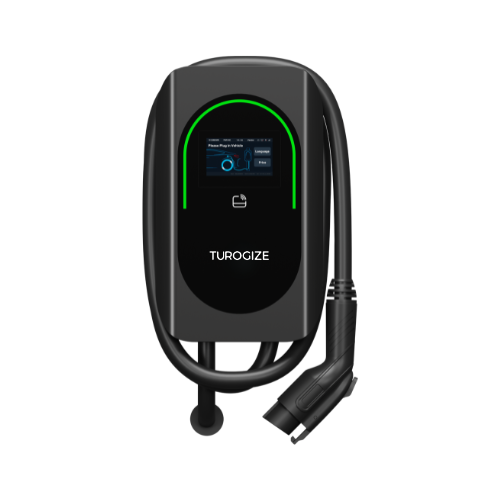

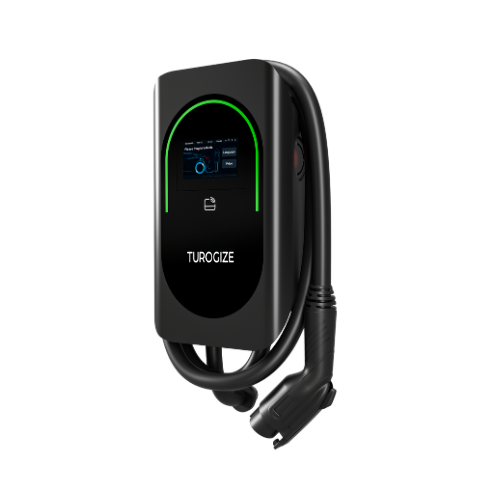

The TuroGize AURORA X Series Commercial-Grade AC Charger is a next-generation EV charging solution where advanced technology meets refined design to deliver superior performance in every environment. Engineered for condominiums, workplaces, shopping centres, and public parking facilities, it offers a seamless balance of reliability, intelligence, and style — featuring a built-in touchless card reader for convenient cashless payments in public and semi-public settings.
Attached with touchless card reader payment, offering added convenience for public or semi-public charging scenarios.
Equipped with a 4.3" touch display for a user-friendly interface, enabling effortless operation
Offers Wi-Fi and Ethernet connectivity options to ensure reliable network performance across different installation environments.
Designed for the toughest weather conditions, operating reliably even in extreme cold temperatures down to -40 °C.
Built for both indoor and outdoor use, meeting the highest industry standards and certifications including ETL, NEMA 4, and CCID 20 for maximum safety and reliability.
Input Rating
208-240Vac
Output Current & Power
19.2kW (80A) / 11.5kW (48A)
Power Wiring
L1 / L2 / GND
Input Cord
Hardwire (Cable not included）
Mains frequency
50 / 60Hz
Connector Type
SAE J1772 Type 1, 18ft
Ground Fault Detection
CCID 20
Protection
UVP, OVP, RCD (CCID 20), SPD, Ground Fault Protection, OCP, OTP, Control Pilot Fault Protection
Meter Accuracy
±1%
Status Indication
LED indication
Screen
4.33" touch screen
Language
English / French
User Interface
Compatible with multiple CPOs
Connectivity
Wi-Fi 6 (2.4G / 5G), Ethernet, 4G (Optional)
Communication Protocols
OCPP 1.6J, ISO15118-2/3
Pile Group Management
Dynamic Load Balancing
User Authentication
Plug&Charge (Free) / RFID Card / Credit Card
Card Reader
RFID, ISO14443A、ISO14443B, 13.56MHz
Software Update
OTA
Safety & Compliance
UL991, UL1998, UL2231, UL2594, ISO15118 (P&C)
Certification
ETL / IC
Warranty
3 years
Button
Emergency Button
Enclosure Rating
NEMA 4 (IP65), IK08
Operating Altitude
< 6561ft (2000m)
Operating Temperature
−40°F ~ +131°F (−40°C ~ +55°C)
Storage Temperature
−40°F ~ +185°F (−40°C ~ +85°C)
Operating Humidity
5 ~ 95%
Mounting
Wall mount / Pedestal (optional)
Product Dimensions
15.83″ × 9.61″ × 4.64″ (402×244×118mm)
Package Dimensions
21.06″ × 16.14″ × 11.42″ (535×410×290mm)
